Remote Management of Kelvin TTX

The Kelvin TTX had to work more effectively without engineers being on site. Impossible? Not for us! Thanks to software updates and developments and the cloud the Kelvin TTX did what our client wanted.

SUMMARY

Electron, being a major player and technology leader with more than 25 years’ experience in providing turnkey heat treatment and diffusion coating solutions, approached Synadia in regards to several challenges related to remote management  which had arisen after the successful trial of the Kelvin TTX machines which were produced earlier this year as a joined effort with Synadia.

It was a pleasure for Synadia to further help Electron with a new set of fresh challenges to be solved.

Synadia made it possible to connect on-demand to specific remote kelvin machines for management purposes. The main trick here was to remotely ask Kelvin TTX to establish a secure channel with the cloud, configure certain components of Kelvin TTX to act as a network gateway and enable TCP communication between the engineer’s laptop and all the hardware components of Kelvin TTX.

All of this was done in just two weeks and brought the following benefits:

  • Human Resource Efficiency

  • Very low operational costs

  • Disaster recovery

  • Simplicity

Header_KelvingTTX_Synadia
Synadia_KelvinTTX-2
Synadia_KelvinTTX

ABOUT KELVIN TTX

Electron, a Dutch Corporation, was founded in 1988. Today, as a member of the Glaesum Group, it maintains a large manufacturing facility and corporate offices in Nijkerk, The Netherlands.

Electron is a major player and technology leader, with more than 25 years’ experience in providing turnkey heat treatment and diffusion coating solutions. Meeting its customers’ needs – from product design to manufacturing, and from follow-up service to maintenance – is what sets Electron apart from other furnace system manufacturers.

Electron is dedicated specifically to the thermal processing industry. Their key personnel have been individually selected for their knowledge and skill in the thermal processing industry.

Superior design features, quality aftermarket service, and a growing list of satisfied customers makes Electron the best qualified company to supply furnace equipment to thermal processing needs.

THE CHALLENGE

In the past we made the Kelvin TTX custom-made and smart! Please refer to the Kelvin TTX case study. Having used a number of these machines several optimization possibilities have been recognized and listed as challenges below.

Network connectivity

A majority of Kelvin TTX machines are placed behind Network Address Translation and, as a result, are not directly accessible from the Internet for management purposes. Asking local IT to set up IP port forwarding is not an option.

Operational Cost

It is an operational burden to maintain the internal hardware of Kelvin TTX. Maintenance requires physical site visits where engineers need to perform hardware firmware upgrades and software updates.

Standardization

Kelvin TTX is a complex machine which has multiple hardware devices to be managed, these devices are connected to a small local network in order to communicate internally. Due to the standard assembly process, each device has exactly the same set of settings (including internal network IP range) that is why having a network of all directly and constantly connected Kelvin TTX machines via secure tunnel simply is  not possible.

WHY AWS

AWS had all necessary building blocks for this project, Synadia only had to utilize them, the need to search for an alternative in another place was simply out of the question.

The AWS cloud was ideal for this challenge since it has offered nearly out of the box an easy way to securely register and remotely manage,  organize, monitor and troubleshoot and query the state of any Kelvin TTX machine.

Additionally,  inexpensive compute and storage, ability to back up resources easily, native support for infrastructure as Code confirmed once again that AWS has everything that is needed for almost any challenge.

Using Amazon Web Services (AWS) allowed Synadia to build the solution with the increased speed, reliability and better performance and at the same time with very low costs in comparison to other remote management services currently available on the market.

“We chose Amazon Web Services because it enabled us to achieve what we wanted in a very short time frame of only two weeks with no risk to reliability, resiliency and security.”

Arie van Wijngaarden | CTO Kelvin TMS BV

For privacy reasons YouTube needs your permission to be loaded.
I Accept

WHY APN PARTNER

Electron and Synadia partnered before, please refer to the Kelvin TTX case study which will reveal all necessary details which depict the history of our previous relationship and cooperation.  It was a mere pleasure for Synadia to further help when Electron addressed Synadaia with a new set of fresh challenges to be solved.

  • Proven by time trust relationship between companies

  • Success in previous projects

  • Knowledge and deep understanding of the Kelvin TTX machine

  • Lack of bureaucracy and extreme agility

  • Simplicity and transparency

THE SOLUTION

Synadia made it possible to connect on-demand to specific remote kelvin machine for management purposes. The main trick here was to remotely ask Kelvin TTX to establish a secure channel with the cloud, configure certain components of Kelvin TTX to act as a network gateway and enable TCP communication between managing station or a laptop of a maintenance engineer and all other hardware components of Kelvin TTX that had to be managed. Below you will find a description of how this was achieved:

  • First, necessary infrastructure (backend and all other dependencies) were built using the Infrastructure as Code approach utilising Cloud Formation.

  • As the next step, Synadia turned one of the hardware components of Kelvin TTX into an AWS IoT Thing: this required one last manual firmware update which brought IoT Certificates to all Kelvin TTX machines which were already in production.

  • After this Synadia was able to send a limited set of commands to a specific Kelvin TTX machine which enabled us to transfer a configuration package which, in its turn, would be used locally to set up the core networking component of this solution: a gateway which will establish a secure channel to the AWS cloud on request.

  • When the gateway was configured it only required another command to establish a secure tunnel to AWS cloud.

  • An Engineer would use a client application installed on his laptop to establish a secure tunnel to AWS as well. Being connected, the laptop would be configured to use the gateway running on Kelvin TTX which would route all packets between the engineers laptop and every hardware component of the Kelvin TTX.

  • As a result, an Engineer would be able to manage every hardware component of Kelvin TTX as if they are connected to his laptop’s network, performing necessary software updates and firmware upgrades using the same set of tools as an engineer would normally use while being on site.

  • Upon completing the maintenance, an engineer would disconnect himself and send a command to Kelvin TTX to release the connection. This would free up the network and would enable another machine to be managed when necessary.

“Synadia handled this challenge exceptionally well, we did not have to be involved too much! We only had to insert SD card with the updated firmware to existing Kelvin TTX machines once and remote management was immediately possible.”

Iris Hosman | Project Engineer Electron BV

In this project Synadia used following AWS services: AWS CodePipline, AWS CloudFormation, AWS CodeBuild, AWS IoT Thing, AWS IoT Core, AWS IoT GreenGrass, AWS Lambda, Amazon VPC, Amazon S3, Amazon Route 53, AWS Auto Scaling, Amazon EC2.

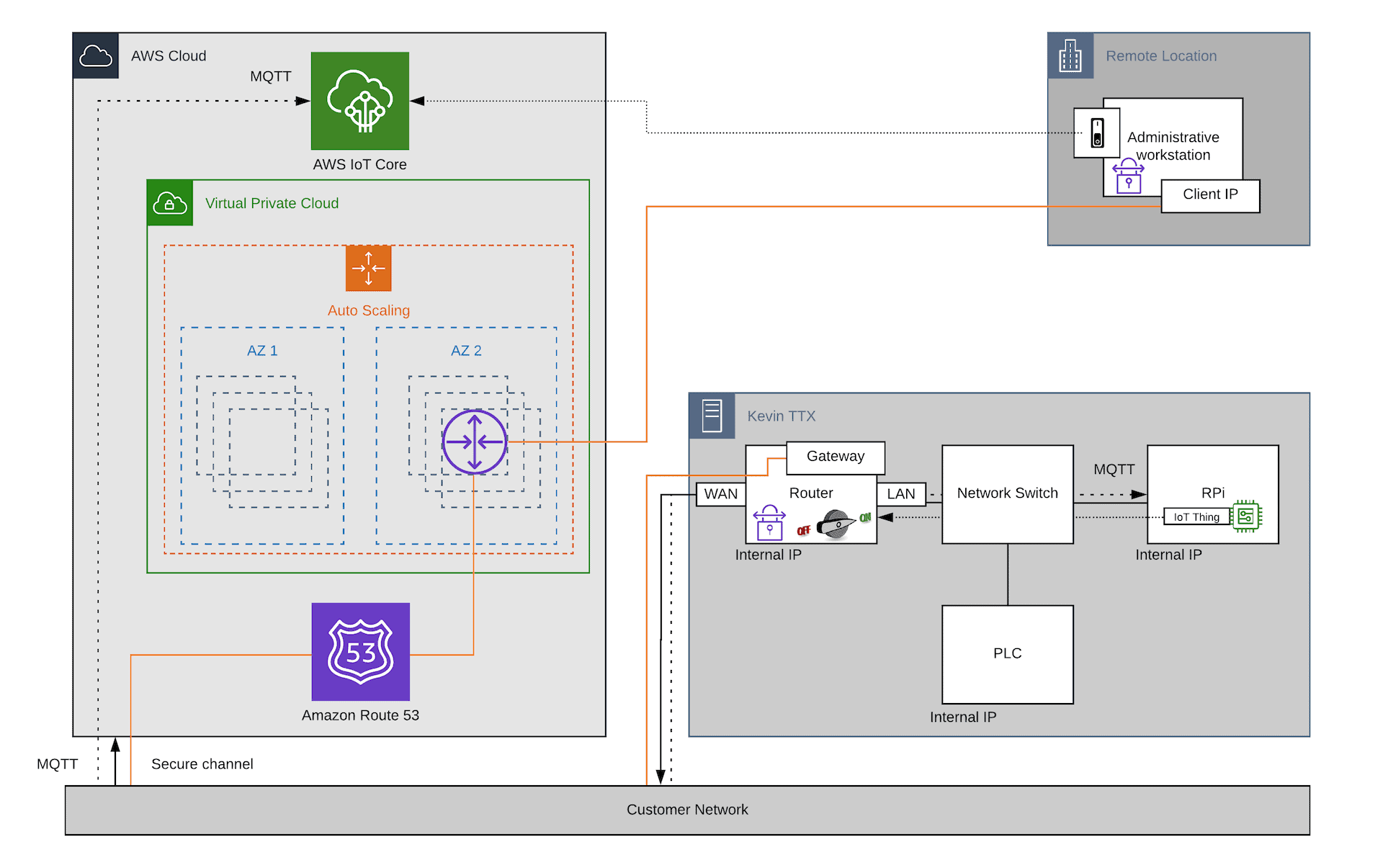

The complexity of relationships between these building blocks is depicted in the diagram below.

RESULTS AND BENEFITS

The new solution runs in the Ireland region, it was built within two weeks using the DevOps development method and resolves all challenges listed above, namely:

  • Even when Kelvin TTX machine is placed behind Network Address Translation ( with no direct Internet access) it is possible to connect to it remotely.

  • Maintenance no longer requires physical site visits to perform firmware upgrades and software updates.

  • Despite the fact that each Kelvin TTX machine has the same internal network IP range for internal devices it is possible to connect to each machine on demand.

The self-healing platform in AWS is able to tolerate the loss of a full physical location which is more than acceptable for the nature of this project. The provided solution does not require additional human resources for maintenance which is why it is very cost efficient regardless of its utilization. Having used integrated with GitHub AWS CodePipeline in combination with AWS Cloud Formation, Synadia was able to utilize the Infrastructure as Code (IaC) approach to provision fully automated deployments. When necessary, it is possible now to spin up the exact replica of the solution, perform needed tests, create lessons learned log and shut the environment down to save costs. If necessary, it is possible to replicate this solution in another region within a few hours rather than weeks.

“Synadia eliminated all existing challenges and made maintenance of Kelvin TTX much easier, cheaper, quicker and much more convenient!”

Jos Koelewijn | CEO Director Electron BV

NEXT STEPS

This project is just an intermediate step to achieve quick wins for Electron and Synadia. In the next project Kelvin TTX will be functionally controlled at the application level and linked to the cloud using a machine-to-machine “Internet of Things” connectivity protocol. With this project we are just establishing the necessary background, turning the Kelvin TTX machines into IoT Things.

As the next step, Synadia will create a cloud application which will be in fact a collection of cloud-based services for functually managing installed on-premises Kelvin TTX machines from one single place. This project will be a mix of state-of-the-art serverless architecture and IoT, it will allow doctors and specialists to gain worldwide insight into current patient data.

BENEFITS

Synadia has freed up valuable staff resources from unnecessary business trips and enabled them to focus on delivering their core activities.

Total monthly costs are below 20 eur regardless of its utilization.

Disaster Recovery is embedded into the design with a Recovery Time Objective(RTO) of just below 2 minutes.

The solution is very simple and does not require any special networking knowledge to use. By a simple click engineers are able to manage the hardware components of Kelvin TTX as if they are connected to the local network.
